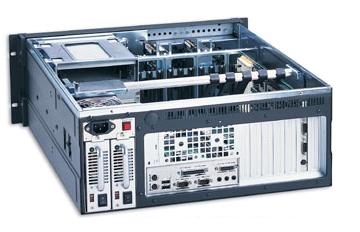

RM-4419 4U Rackmount 20.1 Inch Deep Dual Xeon Support Computer Case
The RM-4419 419 chassis features easy access 5 x
3.5?drive bays! With easy single piece rail
installation to the hard drive, it makes adding
hard drives a snap. This chassis also has an
easy access front fan replacement located in the
front of the case. Modifiable 5.25?bay into a
3.5?allows for a full size CD-Rom or an
addition hard drive. We also included an
expansion bracket holder to insure the PCI/AGP
cards do not come loose during transport.
Optional USB connector in front.
 Description:
|
RM-4419
19" Rackmount Standard |
|
Construction: |
Heavy Duty Cold Rolled Electroplated
Steel |
|
Color: |
Black, Beige, or Custom Design |
|
System Boards: |
Dual Xeon, Dual Opteron, Pentium 4, Dual
Pentium III based boards |
|
Motherboard Size: |
Support ATX M/B (Max. to 12" x 13") |
|
Drive Bays: |
2 x 5.25"(Open), 1 x 3.5"(Open), 5 x
3.5"(Hidden), (Optional 1 x 3.5" HDD
Bracket) |
|
Power Supply: |
(Rear Chassis Installation) Single or
Redundant PS2 Power Max Depth. 300mm
(Optional) |
|
Cooling Units: |
2 x (90mm = 51CFM ea.), 2 x (60mm =
23.5CFM ea. Optional) Heavy Duty Ball
Bearing Fans |
|
Filter: |
Removeable Door Filters for Washing |
|
Expansion Slot: |
7 x Vertical Full Height PCI Slots |
|
Indicators: |
LEDs for Power & HDD Activity |
|
Buttons: |
Power On/Off & System Reset Buttons |
|
Door(s): |
1 x Front Door with Thumbscrew, 1 x
Front Door with Keylock |
|
Dimensions: |
483(W) x 177(H) x 650(D) mm (19" x 7.0"
x 20.1") |
|
Weight: |
17kgs / 37.5lbs |
|
Cu. ft.: |
3.8 |
|
Carton Size: |
21.3" x 11.8" x 26" |
|
Product Applications:
|
Web Server, Email Server, Proxy Server,
Print Server, File Server |
|
|
|
|
